Engineering a High-Performance Pupillometry Framework
ROpen SourceSignal ProcessingData PipelinesReproducibilityPupillometry

Engineering a High-Performance Pupillometry Framework

3,500+ Downloads Later: The Engineering Behind eyeris

January 1, 202615 min read

eyeris[1][2] –– a CRAN-published R package for reproducible pupillometry preprocessing with BIDS compliance, automated QC reports, and scalable pipeline tools.

Building for Reproducibility and Scale

When designing eyeris, I faced a unique engineering challenge: create a system that's both user-friendly for researchers with minimal programming experience, yet powerful and extensible enough for advanced computational users. Here's how I solved several key technical problems.

Architecture: The Pipeline Pattern

Design Philosophy

The core architectural pattern in eyeris is a functional pipeline where each preprocessing operation:

  1. Takes an eyeris object as input
  2. Applies a transformation to the pupil timeseries data
  3. Records its parameters and provenance
  4. Returns the modified eyeris object

This enables both pipe-based workflows (%>% or |>) and function composition while maintaining full traceability.

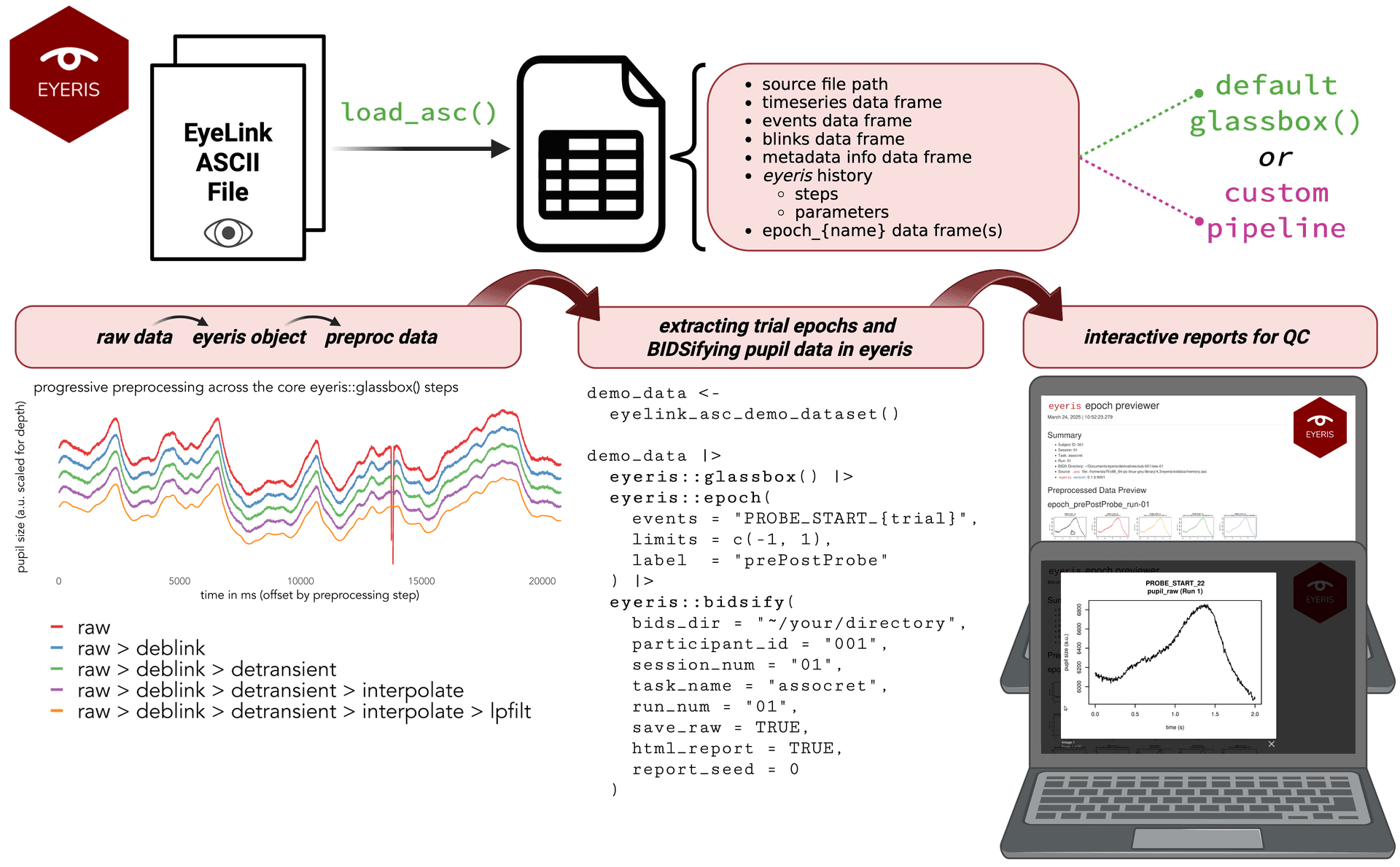

Diagram showing eyeris object structure

The eyeris Object Structure

eyeris_object <- list(
  timeseries = list(
    block_1 = data.frame(...),   # Columnar timeseries with transformations
    block_2 = data.frame(...)
  ),
  events = data.frame(...),      # Event markers from experiment
  blinks = data.frame(...),      # Detected blink intervals
  params = list(...),            # Full parameter history
  latest = "pupil_raw_deblink_detransient_...",  # Current column name
  metadata = list(...)           # Sampling rate, eye tracked, etc.
)

The key innovation is the progressive column naming scheme. Each operation appends its name to the previous column:

pupil_raw
pupil_raw_deblink
pupil_raw_deblink_detransient
pupil_raw_deblink_detransient_interpolate
...

This enables:

  • Full lineage tracking at the data level
  • Easy comparison between processing steps
  • Rollback to any intermediate state
  • Automatic figure generation showing progressive corrections

Signal Processing Implementation

1. Blink Artifact Removal

Blinks are the primary artifact in pupillometry. My implementation:

deblink <- function(eyeris, extend = 50, ...) {
  pipeline_handler(
    eyeris,
    operation = deblink_pupil,
    new_suffix = "deblink",
    extend = extend,
    ...
  )
}

(https://github.com/shawntz/eyeris/blob/dev/R/pipeline-handler.R)

The pipeline_handler() is the "secret sauce" –– it handles all the boilerplate:

  • Iterates over blocks
  • Manages column creation and naming
  • Records parameters
  • Updates object state
  • Logs progress

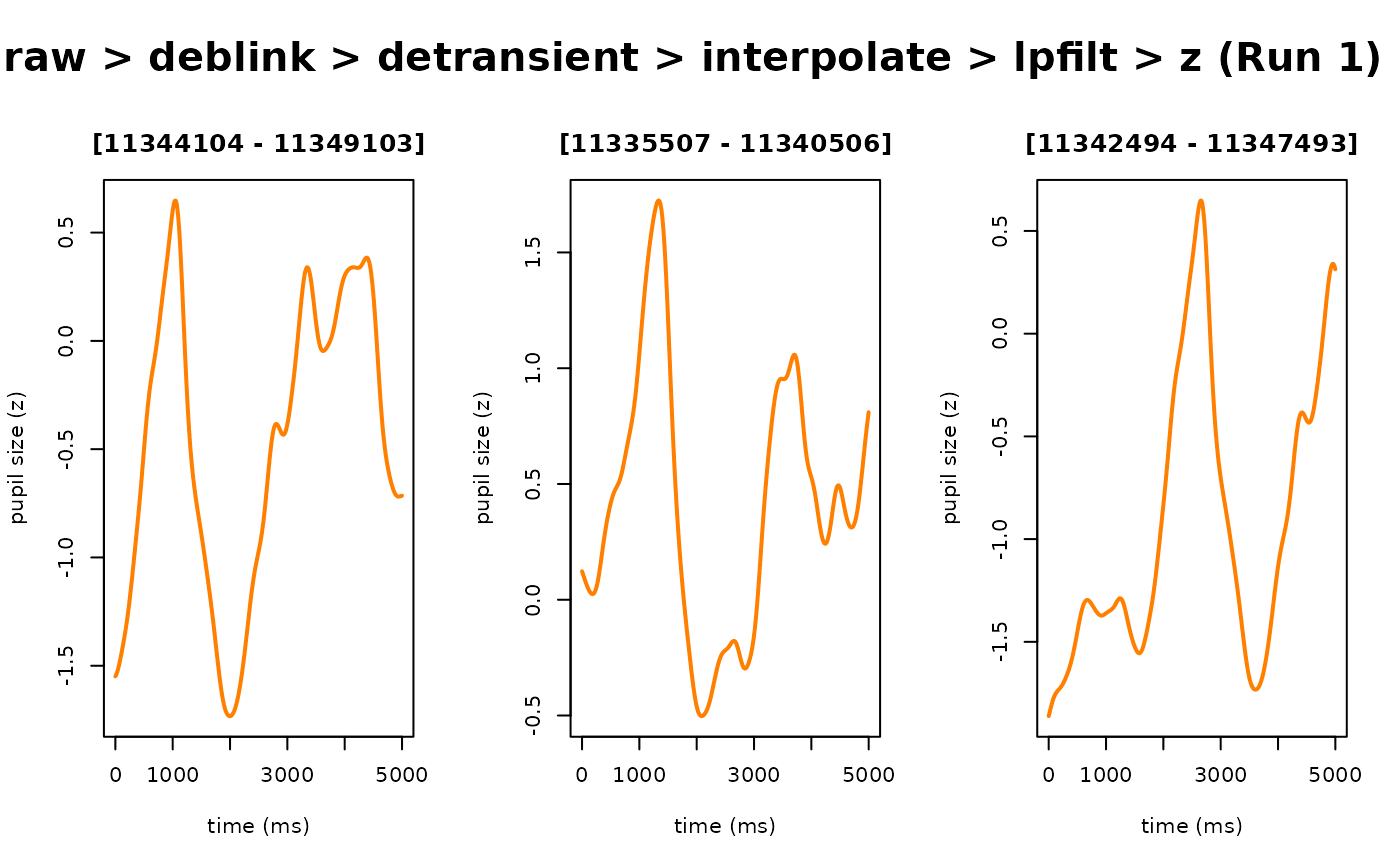

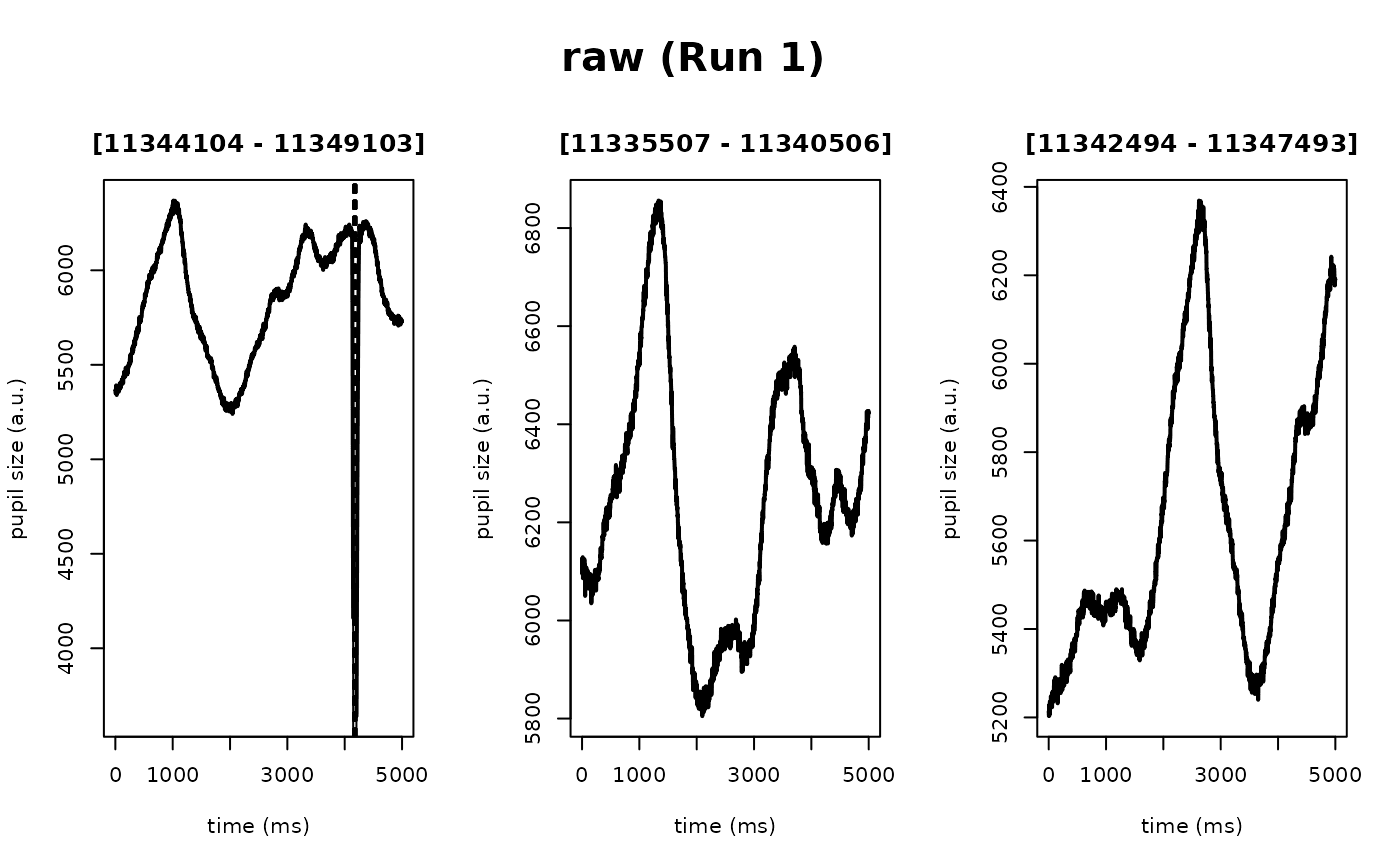

Before/after plot showing blink removal and interpolation Before/after plot showing blink removal and interpolation

2. Lowpass Filtering with Visual Inspection

For filtering, I implemented Butterworth filters using gsignal[3] with an optional frequency response visualization:

#' @param wp The end of passband frequency in Hz (desired lowpass cutoff).
#' @param ws The start of stopband frequency in Hz (required lowpass cutoff).
#' @param rp Required maximal ripple within passband in dB.
#' @param rs Required minimal attenuation within stopband in dB.
lpfilt <- function(eyeris, wp = 4, ws = 8, rp = 1, rs = 35, plot_freqz = TRUE, ...) {
  # design a Butterworth filter with minimum order to meet requirements
  fs_nq <- fs / 2
  foo <- gsignal::buttord(wp / fs_nq, ws / fs_nq, rp, rs)  # gsignal package
  filt <- gsignal::butter(foo, output = "Sos")

  # users can inspect filter characteristics before applying
  if (plot_freqz) {
    # generate Bode plot
  }

  # filter twice (forward and backward) to preserve phase information
  gsignal::filtfilt(filt, prev_pupil)
}

(https://github.com/shawntz/eyeris/blob/dev/R/pipeline-lpfilt.R)

This transparency helps researchers understand exactly how the filter affects their data's frequency content.

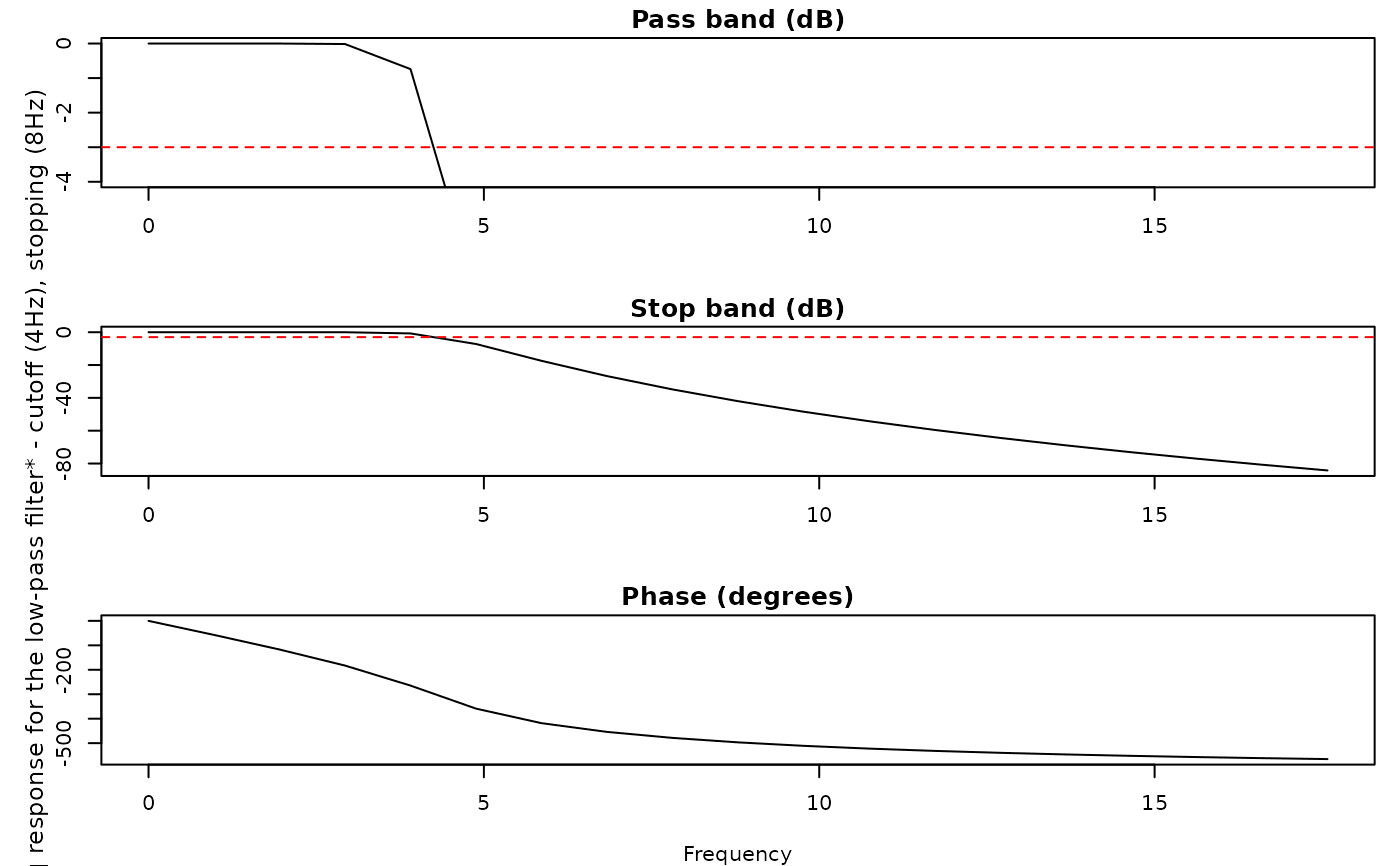

Frequency response plot (Bode diagram) of the Butterworth filter

Performance Optimization: Database Storage

The CSV Problem

Most recently, I ran a pupillometry study with 82 participants, 6 sessions each, which generated approximately 800GB of derived data:

  • ~500 timeseries CSV files
  • ~500 confound CSV files
  • ~500 epoch CSV files
  • ~500 event files
  • 100,000+ trial-level diagnostic figures

On cloud storage (S3, GCS), this becomes a nightmare:

  • High I/O costs for small file operations
  • Slow syncing
  • Expensive data transfers

The DuckDB Solution

I implemented an optional database backend using DuckDB[4], an embedded analytical database:

# load your EyeLink eye-tracking data ASC file
eyeris_data <- load_asc("path/to/your/data.asc")

# preprocess and epoch your data with eyeris glassbox functions
processed_data <- eyeris_data %>%
  glassbox() %>%
  epoch(
    events = "TRIAL_START_{trial_type}_{trial_number}",
    limits = c(-0.5, 2.0),
    label = "trial_epochs"
  )

# enable eyeris database alongside CSV files
bidsify(
  processed_data,
  bids_dir = "~/my_eyetracking_study",
  participant_id = "001",
  session_num = "01",
  task_name = "memory_task",
  csv_enabled = FALSE,   # disable generation of CSV files
  db_enabled = TRUE,     # while also creating your eyeris project database
  db_path = "study_database"  # creates study_database.eyerisdb
)

(https://shawnschwartz.com/eyeris/articles/database-guide.html)

Key technical decisions

  1. Schema Design: Separate tables for each data type with proper foreign keys
  2. Batch Inserts: Use DBI's[5] parameterized queries for safe, fast writes
  3. Lazy Loading: Extract only requested subjects/sessions via SQL queries
  4. Compression: DuckDB's columnar format provides ~3-5x compression vs CSV

Implementation Details

eyeris_db_collect <- function(
  bids_dir,
  db_path = "my-project",
  subjects = NULL,
  data_types = NULL,
  sessions = NULL,
  tasks = NULL,
  epoch_labels = NULL,
  eye_suffixes = NULL,
  verbose = TRUE
) {
  # connect to database
  log_info("Connecting to eyeris database...", verbose = verbose)

  # first check if duckdb is installed
  if (!check_duckdb()) {
    log_error(
      "DuckDB is required for this feature. See installation instructions above.",
      verbose = TRUE
    )
  }

  con <- tryCatch(
    {
      eyeris_db_connect(bids_dir, db_path)
    },
    error = function(e) {
      log_error("Failed to connect to database: {e$message}")
    }
  )

  # ensure disconnection on exit
  on.exit(eyeris_db_disconnect(con))

  # get available tables
  all_tables <- eyeris_db_list_tables(con)

  if (length(all_tables) == 0) {
    log_warn("No tables found in database", verbose = TRUE)
    return(list())
  }

  log_info("Found {length(all_tables)} tables in database", verbose = verbose)

  # define all possible data types
  all_data_types <- c(
    "blinks",
    "events",
    "timeseries",
    "epochs",
    "epoch_summary",
    "run_confounds",
    "confounds_events",
    "confounds_summary"
  )

  # use all data types if none specified
  if (is.null(data_types)) {
    data_types <- all_data_types
  } else {
    # validate specified data types
    invalid_types <- setdiff(data_types, all_data_types)
    if (length(invalid_types) > 0) {
      log_warn(
        "Invalid data types ignored: {paste(invalid_types, collapse = ', ')}",
        verbose = TRUE
      )
      data_types <- intersect(data_types, all_data_types)
    }
  }

  log_info(
    "Extracting data types: {paste(data_types, collapse = ', ')}",
    verbose = verbose
  )

  # extract data for each type
  result_list <- list()

  for (data_type in data_types) {
    log_info("Processing {data_type}...", verbose = verbose)

    tryCatch(
      {
        # handle epoch-specific data types
        if (
          data_type %in% c("epochs", "confounds_events", "confounds_summary")
        ) {
          if (is.null(epoch_labels)) {
            # get all available epoch labels for this data type
            type_tables <- all_tables[grepl(
              paste0("^", data_type, "_"),
              all_tables
            )]
            if (length(type_tables) > 0) {
              # extract unique epoch labels from table names
              # handles both eye-L/eye-R and eyeL/eyeR formats
              epoch_pattern <- paste0(
                data_type,
                "_[^_]+_[^_]+_[^_]+_[^_]+_(.+?)(?:_eye[LR]|_eye-[LR])?$"
              )
              extracted_labels <- unique(gsub(
                epoch_pattern,
                "\\1",
                type_tables
              ))
              # remove failed matches (when pattern doesn't match, return original string)
              extracted_labels <- extracted_labels[
                extracted_labels != type_tables &
                  !is.na(extracted_labels) &
                  extracted_labels != ""
              ]
              epoch_labels_to_use <- if (length(extracted_labels) > 0) {
                extracted_labels
              } else {
                NULL
              }
            } else {
              epoch_labels_to_use <- NULL
            }
          } else {
            epoch_labels_to_use <- epoch_labels
          }

          # extract data for each epoch label
          epoch_data_list <- list()
          if (!is.null(epoch_labels_to_use)) {
            for (epoch_label in epoch_labels_to_use) {
              epoch_data <- eyeris_db_read(
                con = con,
                data_type = data_type,
                subject = subjects,
                session = sessions,
                task = tasks,
                epoch_label = epoch_label,
                eye_suffix = eye_suffixes
              )
              if (!is.null(epoch_data) && nrow(epoch_data) > 0) {
                epoch_data_list[[epoch_label]] <- epoch_data
              }
            }
          }

          # combine all epoch data
          if (length(epoch_data_list) > 0) {
            combined_data <- do.call(rbind, epoch_data_list)
            result_list[[data_type]] <- combined_data
          }
          # check if there are any tables for this data type at all
          type_tables <- all_tables[grepl(
            paste0("^", data_type, "_"),
            all_tables
          )]
          if (length(type_tables) == 0) {
            log_warn(
              "No tables found for data type: {data_type}",
              verbose = verbose
            )
          }
        } else {
          # handle non-epoch data types
          data <- eyeris_db_read(
            con = con,
            data_type = data_type,
            subject = subjects,
            session = sessions,
            task = tasks,
            eye_suffix = eye_suffixes
          )

          if (!is.null(data) && nrow(data) > 0) {
            result_list[[data_type]] <- data
          }
          # check if there are any tables for this data type at all
          type_tables <- all_tables[grepl(
            paste0("^", data_type, "_"),
            all_tables
          )]
          if (length(type_tables) == 0) {
            log_warn(
              "No tables found for data type: {data_type}",
              verbose = verbose
            )
          }
        }
      },
      error = function(e) {
        log_warn(
          "Failed to extract {data_type}: {e$message}",
          verbose = verbose
        )
      }
    )
  }

  # filter out empty results
  result_list <- result_list[lengths(result_list) > 0]

  log_success(
    "Successfully extracted {length(result_list)} data types",
    verbose = verbose
  )
  for (dtype in names(result_list)) {
    n_rows <- nrow(result_list[[dtype]])
    n_subjects <- length(unique(result_list[[dtype]]$subject_id))
    log_info(
      "  {dtype}: {n_rows} rows across {n_subjects} subjects",
      verbose = verbose
    )
  }

  return(result_list)
}

(https://github.com/shawntz/eyeris/blob/dev/R/utils-database.R)

This reduces memory footprint by 10-100x for large studies since you only load what you need.

Data Quality Visualization

Interactive HTML Reports

Using rmarkdown[6] and custom plotting functions, eyeris generates comprehensive HTML reports for each preprocessing run. The technical challenge was making these:

  1. Self-contained: All figures embedded as base64
  2. Fast to generate: Parallel figure creation where possible
  3. Interactive: Clickable sections, collapsible details

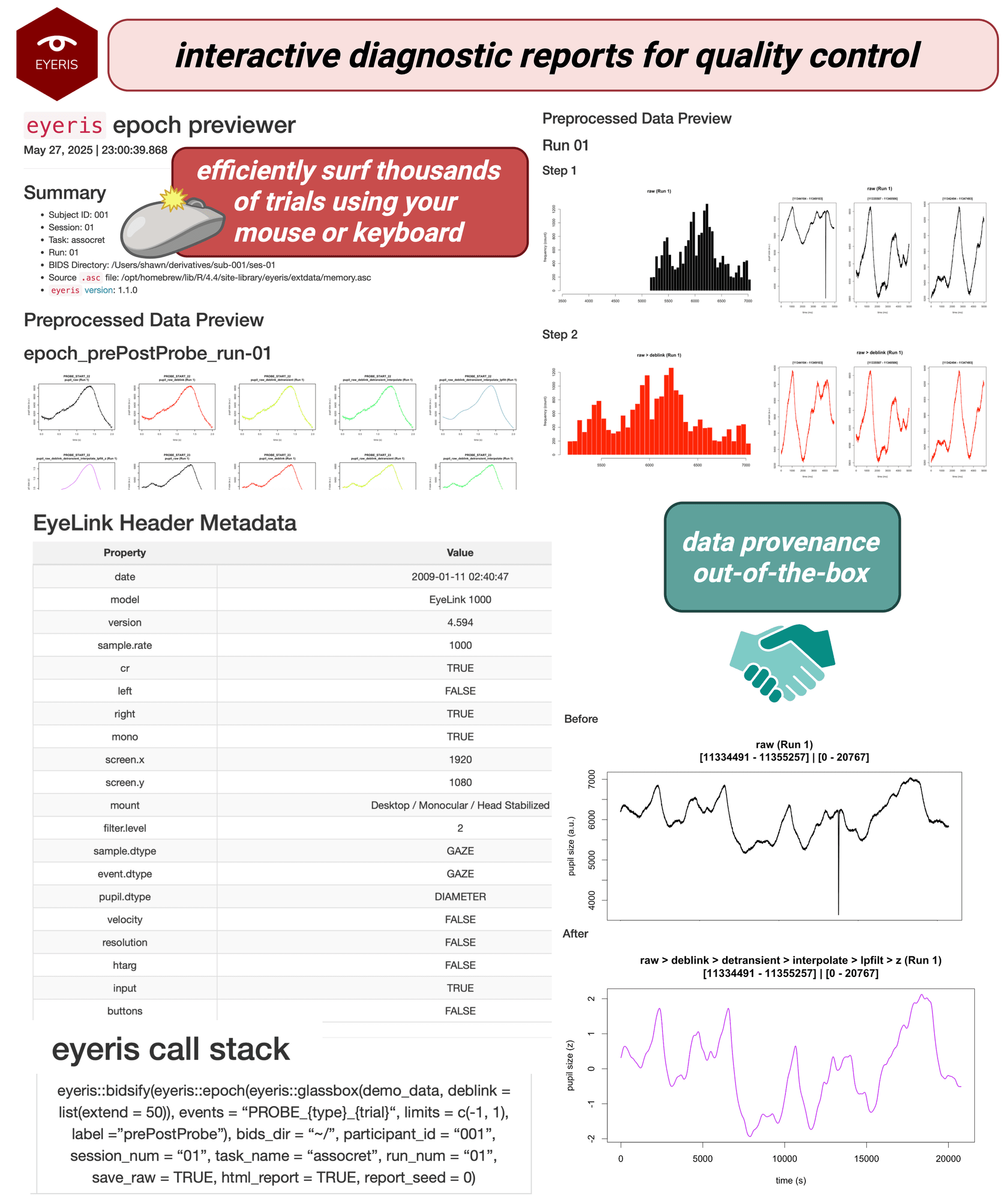

Full HTML report screenshot showing table of contents, preprocessing steps, and embedded plots

Gaze Heatmaps

I implemented 2D kernel density estimation using MASS[7] for gaze position visualization:

plot_gaze_heatmap <- function(eyeris, block = 1, bins = 100, ...) {
  # Extract x,y gaze coordinates
  # Compute 2D KDE using MASS::kde2d (MASS package)
  # Overlay on screen dimensions
  # Render with viridis (or another requested) color scale
}

https://github.com/shawntz/eyeris/blob/dev/R/plot.eyeris.R

This helps researchers quickly identify:

  • Poor calibration
  • Restricted viewing patterns
  • Data quality issues

Gaze heatmap showing distribution of eye positions across screen

Extensibility: The Custom Pipeline System

The Challenge

Users needed to be able to:

  • Write custom preprocessing steps
  • Have them automatically integrate with the pipeline
  • Maintain all provenance tracking
  • Generate appropriate visualizations

The Solution: pipeline_handler()

I created a higher-order function that wraps user operations:

pipeline_handler <- function(
  eyeris,
  operation,
  new_suffix,
  ...
) {
  # 1. Validate eyeris object
  # 2. Get previous operation name
  # 3. Apply core operation (func) to each block
  # 4. Create new column with updated name
  # 5. Record parameters
  # 6. Update latest pointer
  # 7. Generate plots if plot_fun provided
  # 8. Return modified object
}

Users can now write custom extensions with minimal boilerplate:

#' Winsorize pupil values
#'
#' Applies winsorization to extreme pupil values within each block.
#'
#' @param eyeris An `eyeris` object created by [load_asc()].
#' @param lower Lower quantile threshold. Default is 0.01.
#' @param upper Upper quantile threshold. Default is 0.99.
#' @param call_info A list of call information and parameters. If not provided,
#'   it will be generated from the function call.
#'
#' @return Updated `eyeris` object with new winsorized pupil column.
winsorize <- function(eyeris, lower = 0.01, upper = 0.99, call_info = NULL) {
  # create call_info if not provided
  call_info <- if (is.null(call_info)) {
    list(
      call_stack = match.call(),
      parameters = list(lower = lower, upper = upper)
    )
  } else {
    call_info
  }

  # handle binocular objects
  if (is_binocular_object(eyeris)) {
    # process left and right eyes independently
    left_result <- eyeris$left |>
      pipeline_handler(
        winsorize_pupil,
        "winsorize",
        lower = lower,
        upper = upper,
        call_info = call_info
      )

    right_result <- eyeris$right |>
      pipeline_handler(
        winsorize_pupil,
        "winsorize",
        lower = lower,
        upper = upper,
        call_info = call_info
      )

    # return combined structure
    list_out <- list(
      left = left_result,
      right = right_result,
      original_file = eyeris$original_file,
      raw_binocular_object = eyeris$raw_binocular_object
    )

    class(list_out) <- "eyeris"

    return(list_out)
  } else {
    # regular eyeris object, process normally
    eyeris |>
      pipeline_handler(
        winsorize_pupil,
        "winsorize",
        lower = lower,
        upper = upper,
        call_info = call_info
      )
  }
}

(https://shawnschwartz.com/eyeris/articles/custom-extensions.html)

CI/CD and Testing

Automated Quality Assurance

The package includes:

  • Automated builds on multiple R versions (R-release, R-devel)
  • Cross-platform testing (Ubuntu, macOS, Windows)
  • Code formatting checks using custom AIR[8] format rules
  • Spell checking for documentation
  • pkgdown[9] deployment for automatic documentation site updates

GitHub Actions workflow status badges

Test Coverage

eyeris leverages an extensive test suite using testthat[10]. I require all tests to pass before integrating a PR/repo edit upstream. Here's what an eyeris test looks like:

test_that("bin() validates time series monotonicity", {
  # create test data with valid monotonically increasing time series
  valid_data <- data.frame(
    time_orig = seq(0, 10000, by = 100), # original time in ms
    time_secs = seq(0, 10, by = 0.1), # converted time in seconds
    time_scaled = seq(0, 10, by = 0.1), # scaled time
    block = rep(1, 101), # block identifier
    pupil_raw = rnorm(101),
    stringsAsFactors = FALSE
  )

  # create mock eyeris object for testing
  mock_eyeris <- list(
    timeseries = list(block_1 = valid_data),
    latest = list(block_1 = "pupil_raw"),
    info = list(sample.rate = 10)
  )
  class(mock_eyeris) <- "eyeris"

  # test that valid data passes
  expect_no_error({
    result <- eyeris::bin(mock_eyeris, bins_per_second = 5, method = "mean")
  })

  # test with non-monotonic time series (should fail)
  non_monotonic_data <- data.frame(
    time_orig = c(0, 1000, 500, 2000, 3000), # decreasing at index 3
    time_secs = c(0, 1, 0.5, 2, 3), # decreasing at index 3
    time_scaled = c(0, 1, 0.5, 2, 3), # decreasing at index 3
    block = rep(1, 5),
    pupil_raw = rnorm(5),
    stringsAsFactors = FALSE
  )

  mock_eyeris_bad <- list(
    timeseries = list(block_1 = non_monotonic_data),
    latest = list(block_1 = "pupil_raw"),
    info = list(sample.rate = 10)
  )
  class(mock_eyeris_bad) <- "eyeris"

  expect_error(
    {
      eyeris::bin(mock_eyeris_bad, bins_per_second = 5, method = "mean")
    },
    "Time series is not monotonically increasing"
  )

  # test the check_time_monotonic function directly
  # test with empty time vector (should fail)
  expect_error(
    {
      eyeris:::check_time_monotonic(numeric(0))
    },
    "Time vector is NULL or empty"
  )

  # test with single time point (should fail)
  expect_error(
    {
      eyeris:::check_time_monotonic(1)
    },
    "Insufficient non-NA time points to validate monotonicity"
  )

  # test with all NA time values (should fail)
  expect_error(
    {
      eyeris:::check_time_monotonic(rep(NA_real_, 5))
    },
    "Insufficient non-NA time points to validate monotonicity"
  )

  # test with some NA values but valid monotonic sequence
  expect_no_error({
    eyeris:::check_time_monotonic(c(0, NA, 1, 2, NA, 3))
  })

  # test with valid monotonically increasing sequence
  expect_no_error({
    eyeris:::check_time_monotonic(c(0, 1, 2, 3, 4, 5))
  })

  # test with non-monotonic sequence
  expect_error(
    {
      eyeris:::check_time_monotonic(c(0, 1, 0.5, 2, 3))
    },
    "Time series is not monotonically increasing"
  )
})

(https://github.com/shawntz/eyeris/blob/dev/tests/testthat/test-time_monotonicity.R)

Key Engineering Lessons

1. Abstraction Layers Enable Flexibility

The pipeline_handler() abstraction means I can change internal implementations without breaking user code.

2. Columnar Storage >> Row-Based for Timeseries

DuckDB's columnar format is perfect for pupillometry data where analyses typically operate on entire columns.

3. Provenance Tracking Isn't Optional

In scientific computing, you must be able to recreate any result. Automatically recording all parameters and operations was crucial.

4. Performance Matters in Research Tools

Researchers may process hundreds of subjects. A 10-second improvement per subject saves hours in production.

5. Documentation Drives Adoption

We invested in 8+ comprehensive vignettes, function documentation, and tutorials. This was as important as the code itself.

Performance Benchmarks

Typical processing for one participant (1000 Hz data, 30-minute session):

  • Full pipeline: ~2-3 seconds
  • BIDS export (CSV): ~1 second
  • BIDS export (Database): ~0.3 seconds
  • HTML report generation: ~5 seconds

Database vs CSV for 100 participants:

  • CSV: 400+ files, ~2 GB total, 15-20 seconds to load all subjects
  • Database: 1 file, ~500 MB, 2-3 seconds to load all subjects (5-7x faster)

Tech Stack

  • Core: R (>= 4.1)
  • Signal Processing: gsignal (Butterworth filters), custom implementations
  • Data Manipulation: dplyr, data.table, purrr[11]
  • Database: DuckDB via DBI interface
  • Visualization: Base R graphics, viridis[12] color scales, custom themes
  • Reporting: rmarkdown, knitr
  • File I/O: eyelinker[18] for ASC parsing, optional arrow[19] for Parquet support

Future Technical Roadmap

  1. Parallel Processing: Implement future[13] / furrr[14] for multi-core batch processing
  2. Real-time Preview: Shiny[15] dashboard for live pipeline configuration
  3. Python Bridge: reticulate[16] integration for Python users [in progress]
  4. Distributed Computing: Apache Spark[17] backend for massive multi-site studies

Explore the Codebase & Research Paper

eyeris –» Package: CRAN

eyeris –» Source: GitHub

eyeris –» Docs: shawnschwartz.com/eyeris

eyeris –» Paper: bioRxiv

References

  1. [1]Schwartz, S.T. (2025). eyeris: Flexible, Extensible, & Reproducible Pupillometry Preprocessing. Retrieved from https://cran.r-project.org/package=eyeris
  2. [2]Schwartz, S.T., et al. (2025). eyeris: A flexible, extensible, and reproducible pupillometry preprocessing framework in R. bioRxiv. Retrieved from https://doi.org/10.1101/2025.06.01.657312
  3. [3]van Boxtel, G. (2021). gsignal: Signal Processing. Retrieved from https://cran.r-project.org/package=gsignal
  4. [4]Mühleisen, H. & Raasveldt, M. (2026). duckdb: DBI Package for the DuckDB Database Management System. https://doi.org/https://r.duckdb.org/
  5. [5]R Special Interest Group on Databases (2024). DBI: R Database Interface. Retrieved from https://cran.r-project.org/package=DBI
  6. [6]Allaire, J.J., et al. (2025). rmarkdown: Dynamic Documents for R. Retrieved from https://cran.r-project.org/package=rmarkdown
  7. [7]Venables, W.N. & Ripley, B.D. (2002). Modern Applied Statistics with S. Retrieved from https://www.stats.ox.ac.uk/pub/MASS4/
  8. [8]Vaughan, D., & Henry, L. (2025). Air, an extremely fast R formatter. Retrieved from https://tidyverse.org/blog/2025/02/air/
  9. [9]Wickham, H., et al. (2025). pkgdown: Make Static HTML Documentation for a Package. Retrieved from https://cran.r-project.org/package=pkgdown
  10. [10]Wickham, H. (2011). testthat: Get Started with Testing. The R Journal, 3, 5-10. Retrieved from https://journal.r-project.org/articles/RJ-2011-002/
  11. [11]Wickham, H., et al. (2019). Welcome to the tidyverse. Journal of Open Source Software, 4(43), 1686. Retrieved from https://cran.r-project.org/package=tidyverse
  12. [12]Garnier, S., et al. (2024). viridis: Colorblind-Friendly Color Maps for R. Retrieved from https://cran.r-project.org/package=viridis
  13. [13]Bengtsson, H. (2021). A Unifying Framework for Parallel and Distributed Processing in R using Futures. The R Journal, 13(2), 273-291.
  14. [14]Vaughan, D. & Dancho, M. (2022). furrr: Apply Mapping Functions in Parallel using Futures. Retrieved from https://cran.r-project.org/package=furrr
  15. [15]Chang, W., et al. (2024). shiny: Web Application Framework for R. Retrieved from https://cran.r-project.org/package=shiny
  16. [16]Kalinowski, T., et al. (2024). reticulate: Interface to Python. Retrieved from https://cran.r-project.org/package=reticulate
  17. [17]Zaharia, M., et al. (2016). Apache Spark: A Unified Engine for Big Data Processing. Communications of the ACM, 59(11), 56-65. https://doi.org/10.1145/2934664
Shawn Schwartz

Written by

Shawn Schwartz

Software engineer, researcher, and lifelong learner. PhD from Stanford, Ex-Slack Data Science. Building tools at the intersection of technology and science.

Subscribe to my newsletter

Get notified when I publish new articles. No spam, unsubscribe anytime.

Subscribe on Substack

Comments
